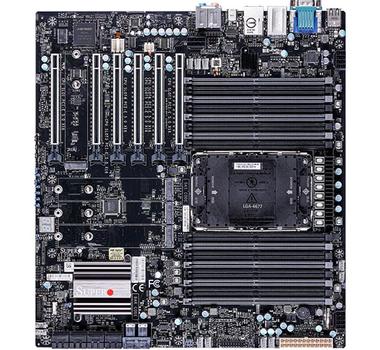

SUPERMICRO X13SWA-TF Utvidet ATX (E-ATX) Hovedkort
Du må logge inn for å handle/se priser.
|
|
SUPERMICRO X13SWA-TF Utvidet ATX (E-ATX) Hovedkort
-
Prosessorsokkel
LGA 4677 (Socket E)
-
Chipset
Intel W790
-
M.2 Slot
0
-
Minnespor
16 x DIMM, DDR5
-
Maksimal RAM-frekvens
4.8GHz
-
Støttet maksimalt minne
4TB
-
Formfaktor
EATX
|
X13SWA-TF
MBD-X13SWA-TF-O
Features:
- Intel® Xeon® W-3400 series, W-2400 series, W-3500 series, W-2500 series processors, Up to 385W TDP
- Intel® W790
- Up to 4TB(W-3400/ W-3500)/2TB(W-2400/ W-2500) 3DS ECC RDIMM, 1TB(W-3400)/512GB(W-2400) ECC RDIMM; DDR5-4800MT/s(1DPC)/ 4400MT/s(2DPC), in 16 DIMM slots
- M.2 Interface: 4 PCIe 5.0 x4
- M.2 Form Factor: 2280/22110
- M.2 Key: M-Socket (w/o heat sink)
- 2 U.2 PCIe 3.0 for NVMe 2.5" SSD drives (U.2-1, U.2-2)
Specifications:
Physical Stats
- Form Factor E-ATX
- Dimension 13" x 12" (33.02cm x 30.48cm)
Processor
- CPU
- Intel®Xeon® W-3400, W-2400, W-3500 and W-2500 Series Processors
- Single Socket E supported, CPU TDP supports Up to 350W TDP
- Core Up to 56 cores
System Memory
- Memory Capacity
- 16 DIMM slots
- Up to 4TB 3DS ECC Registered RDIMM, DDR5-4800MT/s
- Memory Type
- 4800/4400 MT/s ECC DDR5 RDIMM (3DS)
- Up to 4TB 3DS ECC RDIMM, 1TB ECC RDIMM; DDR5-4800MT/s(1DPC)/ 4400MT/s(2DPC), with Intel Xeon W-3400/ W-3500 series processor in 16 DIMM slots.
- Up to 2TB 3DS ECC RDIMM, 512GB ECC RDIMM; DDR5-4800MT/s(1DPC)/ 4400MT/s(2DPC), with Intel Xeon W-2
- DIMM Sizes
- 16GB, 32GB, 64GB, 128GB, 256GB
- RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
- Memory Voltage 1.1V
On-Board Devices
- Chipset Intel® W790
- SATA Intel® W790 controller for 8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
- Audio Realtek ALC888S 7.1 HD Audio
- Network Controllers
- Single LAN with Marvell AQC113C, 1x 10GbE RJ45 LAN port with AQC113C
- Single LAN with Intel® Ethernet Controller I210-AT, 1x 1GbE LAN Port with Intel i210AT, share with IPMI
Input / Output
- SATA 8 SATA 3 (6Gbps) port(s)
- USB
- 4 USB 2 port(s) (2 via header; 2 rear type A)
- 2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)
- 4 USB 3.2 Gen2x1 port(s) (4 rear Type A)
- 2 USB 3.2 Gen1 port(s) (2 via header)
- Video Output 1 VGA port(s) for IPMI only
- Serial Port 1 COM Port(s) (1 rear)
- TPM 1 TPM Header
Expansion Slots
- PCIe 6 PCIe 5.0 x16
- M.2
- M.2 Interface: 4 PCIe 5.0 x4, RAID 0, 1, 5, 10
- Form Factor: 22110, 2280
- Key: M-Key
System BIOS
- BIOS Type 32MB SPI Flash with AMI BIOS
- BIOS Features
- ACPI 6.0
- Plug and Play (PnP)
- BIOS rescue hot keys
- Riser card auto-detection support
- SMBIOS 3.0 or later
Management
- Software Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0
- Power Configurations Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Power supply monitoring
PC Health Monitoring
- FAN 10x 4-pin fan headers (up to 10 fans)
Operating Environment
- Operating Temperature Range 0°C - 50°C (32°F - 122°F)
- Non-Operating Temperature Range -20°C - 60°C (-4°F - 140°F)
