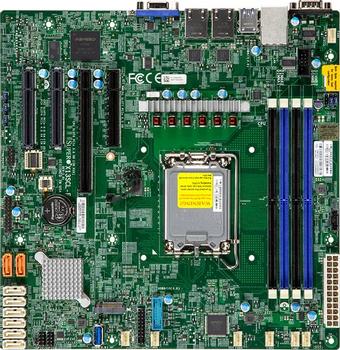

SUPERMICRO X13Scl-F-B Bulk Intel C262

X13SCL-F

• Intel® Xeon® E-2400 Series Processor, Pentium®* Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP
• Intel® C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• Up to 128GB ECC Unbuffered DIMM, DDR5-4400MHz, in 4 DIMM slots
• 1 PCIe 5.0 x8, 1 PCIe 5.0 x8 (in x16), 2 PCIe 4.0 x4 (in x8)
• Dual LAN with Intel® i210 Gigabit Ethernet Controller
• M.2 Interface: 1 PCIe 4.0 x4, M.2 Form Factor: 2280/22110, M.2 Key: M-Key

• Form Factor microATX
• Dimension 9.6" x 9.6" (24.38cm x 24.38cm)

• CPU
  • Intel® Xeon® E-2400/Pentium® Processor
  • Single Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 95W TDP
• Core Up to 8 cores

• Memory Capacity 4 DIMM slots, Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s
• Memory Type 4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (2DPC)
• DIMM Sizes 8GB, 16GB, 32GB
• Memory Voltage 1.1V
• Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

• Chipset Intel® C262
• SATA Intel® C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• IPMI ASPEED AST2600 BMC
• Graphics 1 Aspeed AST2600 BMC port(s)
• Network Controllers Dual LAN with 1GbE with Intel® I210

• SATA 8 SATA3 (6Gbps) port(s)
• LAN 1 RJ45 Dedicated IPMI LAN port
• USB
  • 6 USB 2.0 port(s) (4 via header; 2 rear)
  • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
• Video Output 1 VGA D-Sub Connector port(s)
• Serial Port 2 COM Port(s) (1 header; 1 rear)
• TPM 1 TPM Header

• PCIe
  • 2 PCIe 4.0 x4 (in x8 slot),
  • 1 PCIe 5.0 x8,
  • 1 PCIe 5.0 x8 (in x16 slot)
• M.2
  • M.2 Interface: 1 PCIe 4.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key

• BIOS Type AMI 32MB AMI UEFI
• BIOS Features
  • ACPI 6.4
  • SMBIOS 3.5
  • UEFI 2.8
  • Plug and Play (PnP)
  • PCI FW 3.3

• Software Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0
• Power Configurations ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN

• Hardware Trusted Platform Module (TPM) 2.0

• Voltage VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, Memory Voltages, 7-fan status, +3.3V standby
• LED
  • UID/Remote UID
  • CPU / System Overheat LED
• Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • PECI
• FAN
  • 7x 4-pin fan headers (up to 7 fans)
  • Fan speed control
  • Overheat LED indication
  • 7 fans with tachometer status monitoring
• Other Features WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion header, ACPI power management

• Operating Temperature Range 0°C - 50°C (32°F - 122°F)
• Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
• Operating Relative Humidity Range 8% - 90% (non-condensing)
• Non Operating Relative Humidity Range 5% - 95% (non-condensing)
