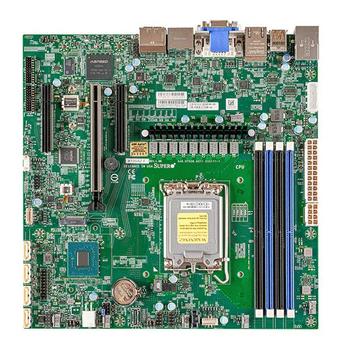

SUPERMICRO X13Saz-F Intel R680E Lga 1700
Du må logge inn for å handle/se priser.
|
|
SUPERMICRO X13Saz-F Intel R680E Lga 1700
-
Prosessorsokkel
LGA 1700 (kontakt V)
-
Chipset
Intel R680E
-
M.2 Slot
1
-
Minnespor
4 x DIMM, DDR5
-
Maksimal RAM-frekvens
4.4GHz
-
Støttet maksimalt minne
128GB
-
Formfaktor
Micro ATX
|
X13SAZ-F
MBD-X13SAZ-F-B
Features:
- 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP
- Intel® R680E
- Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots
- 1 PCIe 5.0 x16 slot, 2 PCIe 4.0 x4 slots, 1 PCIe 4.0 x4 OCulink port
- M.2 Interface: 1 PCIe 4.0 x4
- M.2 Form Factor: 2280/22110
- M.2 Key: M-Key
Specifications:
Physical Stats
- Form Factor Micro-ATX
- Dimension 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
- CPU
- 14th/13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
- Single Socket V0 supported
- Core Up to 24 cores
System Memory
- Memory Capacity
- 4 DIMM slots
- Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s
- Memory Type 4400/4000/3600 MT/s
- DIMM Sizes 4GB, 8GB, 16GB, 32GB
- Memory Voltage 1.1V
- Error Detection
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset Intel R680E
- SATA Intel R680E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Audio ALC 888S HD Audio
- Network Controllers Dual LAN with Intel® Ethernet i225LM
Input / Output
- SATA 4 SATA3 (6Gbps) port(s)
- USB
- 4 USB 2.0 port(s) (4 via header)
- 6 USB 3.2 Gen2 port(s) (4 rear type A; 2 via header)
- 2 USB 3.2 Gen1 port(s) (2 via header)
- Video Output 1 VGA port(s), 1 DVI - D port(s), 1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s)
- Serial Port 4 COM Port(s) (2 header RS232/422/485; 2 header RS232)
- TPM TPM TPM 2.0 onboard
Expansion Slots
- PCIe
- 1 PCIe 5.0 x16,
- 2 PCIe 4.0 x4 (in x8 slot)
- M.2
- M.2 Interface: 1 PCIe 4.0 x4
- Form Factor: 2280/22110
- Key: M-Key
System BIOS
- BIOS Type AMI UEFI
- BIOS Features
- ACPI 6.1
- SMBIOS 3.0 or later
- PCI FW 3.0
- UEFI 2.7
- RTC (Real Time Clock) Wakeup
Management
- Software Redfish API, Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0
- System Management Software Wake-on-LAN, Watchdog, KVM with dedicated LAN
- Power Configurations ACPI Power Management, ATX Power connector, +12V DC Power Input
PC Health Monitoring
- Voltage VBAT, Memory temperature, CPU temperature, Chipset Voltage, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V, BMC/IPMI Heartbeat LED, Dual Cooling Zone, UID, 6 fans with tachometer status monitoring
- LED Power LED
- Temperature
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Other Features RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source
- FAN 6x 4-pin fan headers (up to 6 fans)
Operating Environment
- Operating Temperature Range 0°C - 60°C (32°F - 140°F)
- Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F)
- Operating Relative Humidity Range 10% - 85% (non-condensing)
- Non Operating Relative Humidity Range 5% - 95% (non-condensing)
