| Product SKUs |

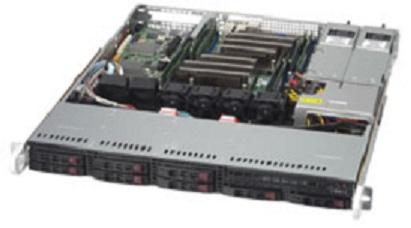

| CSE-113MFAC2-R804CB | - SuperChassis 113MFAC2-R804CB
|
| |
| Form Factor |
|
| 1U Chassis, support motherboard size: ATX 12" x 10" |
| |
| Processor Support |
|
| Dual and Single Intel® and AMD processors |
| |
| Dimensions |
|
| Height | |
| Width | |
| Depth | |
| Gross Weight | |
| Packaging (W x H x L) | - 24" (610 mm) x 8.3" (211 mm) x 30" (762 mm)
|
| Available Color | |
| |
| Expansion Slots |
|
- 1 full height expansion slot(s)
|
| |
| Drive Bays |
|
- 8 x 2.5" hot-swap SAS/SATA drive bay
|
| |
| Backplane |
|
- 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
|
| |
| Peripheral Drives |
|
- Optional 1 x slim DVD-ROM drive bay
|
| |
| Front Panel |
|
| Buttons | - Power On/Off button
- System Reset Button
|
| LEDs | - 2 Network Activity LEDs
- HDD activity LED
- Power Status LED
- Unit Identification (UID) LED
|
| Systems Cooling |
|
| Fans | - 4 x 40x28mm PWM fan(s)
- Optional 2 x fans for AOC cooling
|
| |
| System Monitoring |
|
|
| |
| Operating Environment (System) |
|
| Operating Temperature Range | |
| Non-Operating Temperature Range | - -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range | - 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range | - 5% - 95% (non-condensing)
|
| |
| Power Supply |
| 800W 1U redundant power supply |
| Power Efficiency | |
| Total Output Power and Input | - 750W with Input 100 - 127Vac
- 800W with Input 200 - 240Vac
- 800W with Input 230 - 240Vdc
|
| AC Input Frequency | |
| Dimensions (L x W x H) | |
| Output Type | |
| +12V | - Max: 62.5A / Min: 0.5A (100Vac - 127Vac)
- Max: 66.6A / Min: 0.5A (200Vac - 240Vac)
- Max: 66.6A / Min: 0.5A (230 - 240)
|
| +5Vsb | |
| Power Distributor | - PDB-PT813M-2424
- O/P: 120/62
- +5V Max: 25
- +3.3V Max: 25
- -12V Max: 0.6
|
| Certification | |
| |
| Regulatory (Power Supply) |
|
| Power Supply Safety / EMC | |
