| Product SKUs |
|

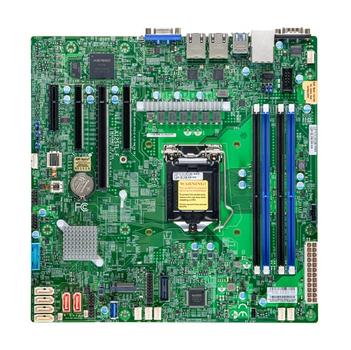

| MBD-X12STL-F |
|
|
|
|
|
| Physical Stats |
|
| Form Factor |
|
| Dimension |
- 9.6" x 9.6" (24.38cm x 24.38cm)
|
|
|
|
|
| Processor |
|
| CPU |
- 10th Generation Intel® Pentium® Processor, Intel® Xeon® E-2300 Processor
- Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
|
| Core |
|
|
|
|
|
| System Memory |
|
| Memory Capacity |
- 4 DIMM slots
- Up to 128GB ECC UDIMM, DDR4-3200MHz
|
| Memory Type |
|
| DIMM Sizes |
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
|
|
|
|
|
| On-Board Devices |
|
| Chipset |
|
| SATA |
- Intel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
| IPMI |
|
| Graphics |
|
| Network Controllers |
- Dual LAN with 1GbE with Intel® I210
|
|
|
|
|
| Input / Output |
|
| SATA |
|
| LAN |
|
| USB |
- 4 USB 2.0 port(s) (2 rear; 2 via header)
- 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
|
| Video Output |
- 1 VGA D-Sub Connector port(s)
|
| Serial Port |
- 2 COM Port(s) (1 header; 1 rear)
|
| DOM |
- 2 SuperDOM (Disk on Module) power connector
|
| TPM |
|
|
|
| Expansion Slots |
|
| PCI-E |
- 1 PCI-E 4.0 x8 (in x16 slot),
- 1 PCI-E 4.0 x8,
- 1 PCI-E 4.0 x4 (in x8 slot),
- 1 PCI-E 3.0 x2 (in x4 slot)
|
| M.2 |
- M.2 Interface: 1 PCI-E 3.0 x4
- Form Factor: 2280/22110
- Key: M-Key
|
|
|
|
|
| System BIOS |
|
| BIOS Type |
|
| BIOS Features |
- ACPI 6.0
- SMBIOS 3.3
- Plug and Play (PnP)
- RTC (Real Time Clock) Wakeup
- UEFI 2.7
- USB Keyboard support
- PCI 3.0
|
|
|
|
|
| Management |
|
| Software |
- SuperDoctor® 5, SUM, SPM, SSM, IPMI2.0, Watchdog
|
| System Management Software |
- IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
|
| Power Configurations |
- Power-on mode for AC power recovery, ACPI Power Management
|
|
|
|
|
| PC Health Monitoring |
|
| Voltage |
- VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
|
| LED |
- UID/Remote UID
- BMC/IPMI Heartbeat LED
|
| Temperature |
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Monitor 2 (TM2) support
- PECI
|
| FAN |
- 6x 4-pin fan headers (up to 6 fans)
- Thermal control tachometer fan connectors
- Fan speed control
- 6 fans with tachometer status monitoring
- Overheat LED indication
|
| Other Features |
- WOL, UID, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
|
|
|
|
|
| Operating Environment |
|
| Operating Temperature Range |
- 0°C - 50°C (32°F - 122°F)
|
| Non-Operating Temperature Range |
- -20°C - 60°C (-4°F - 140°F)
|
| Operating Relative Humidity Range |
- 10% - 85% (non-condensing)
|
| Non Operating Relative Humidity Range |
- 10% - 95% (non-condensing)
|
