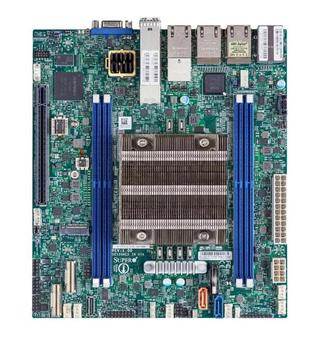

SUPERMICRO Motherboard Intel Soc Micro

X12SDV-4C-SPT8F

• System on Chip
• Intel® Xeon® Processor D-2712T, CPU TDP 65W
• Up to 256GB Registered ECC RDIMM, DDR4-2667MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2667MHz, in 4 DIMM slots
• 1 PCIe 4.0 x16
• 2 PCIe 4.0 NVMe x8 SlimSAS Internal Port
• 1 OCuLink Connector (4 SATA/PCIe 3.0 x4)
• 1 M.2 M-Key 2242/2280 (SATA/PCIe 3.0 x4)
• Quad 1G RJ45 with Intel® I350-AM4
• Dual 25G SFP28 with Intel SoC
• Dual 10Gbase-T RJ-45 with Intel® Ethernet Controller X550-AT2

• Form Factor Micro-ATX
• Dimension 7.5" x 8.5" (19.05cm x 21.59cm)

• CPU
  • Intel® Xeon® Processor D-2712T
  • Single Socket FCBGA-2579 supported, CPU TDP supports Up to 65W TDP
• Core Up to 4 cores / 15MB Cache

• Memory Capacity
  • 4 DIMM slots
  • Up to 512GB ECC LRDIMM, DDR4-2666MT/s; Up to 256GB ECC RDIMM, DDR4-2666MT/s; Up to 512GB ECC/non-ECC , DDR4-2666MT/s
• Memory Type 2666/2400 MT/s ECC/non-ECC DDR4 LRDIMM, RDIMM
• DIMM Sizes
  • LRDIMM: 64GB, 128GB
  • RDIMM: 8GB, 16GB, 32GB, 64GB
  • UDIMM: 4GB, 8GB, 16GB, 32GB
• Memory Voltage 1.2V
• Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

• Chipset System on Chip
• SATA
  • SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • 4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe)
• IPMI ASPEED AST2600 BMC
• Graphics 1 Aspeed AST2600 BMC port(s)
• Network Controllers
  • Dual LAN with 25G SFP28 LAN via SoC
  • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
  • Quad LAN with Intel® i350 Gigabit Ethernet Controller

• SATA 2 SATA3 (6Gbps) port(s)
• LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
  • 2 SFP28 25 Gigabit Ethernet LAN ports
  • 2 RJ45 10GBase-T ports
• USB
  • 4 USB 2 port(s) (4 via header)
  • 2 USB 3 port(s) (2 rear type A)
• Video Output 1 VGA D-Sub Connector port(s)
• Serial Port 1 COM Port(s) (1 header)
• DOM 1 SATA DOM (Disk on Module) power connector support
• TPM 1 TPM Header & Chip both

• PCIe
  • 1 PCIe 4.0 x16,
  • 1 PCIe 3.0 x4 (or 4x SATA), via Oculink,
  • 2 PCIe 4.0 x8, via SlimSAS
• M.2
  • M.2 Interface: 1 SATA/PCIe 3.0 x4
  • Form Factor: 2242/2280
  • Key: M-Key
  • System BIOS

• BIOS Type AMI 32MB SPI Flash EEPROM
• BIOS Features
  • ACPI 6.3
  • UEFI 2.7
  • SMBIOS 3.3
  • Plug and Play (PnP)
  • PCI FW 3.0

• Software Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0
• Power Configurations ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection, Power-on mode for AC power recovery

• Voltage 3.3V standby, +5V standby, +5V, +3.3V, +12V, Memory Voltages, Monitors CPU Core Voltages
• LED
  • UID/Remote UID
  • BMC/IPMI Heartbeat LED
  • Overheat/Fan Fail/PWR Fail LED
  • Power Indicator LED
  • LAN temperature
• Temperature
  • CPU thermal trip support
  • peripheral temperature
  • System temperature
  • Memory temperature
  • NVMe temperature
  • Platform Environment Control Interface (PECI)/TSI
• FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • System level control, PWM fan speed control, Fan speed control, 6 fans with tachometer status monitoring, Overheat LED indication, Dual Cooling Zones
• Other Features UID, RoHS, Node Manager Support, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source

• Operating Temperature Range 0°C - 60°C (32°F - 140°F)
• Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F)
• Operating Relative Humidity Range 10% - 85% (non-condensing)
• Non Operating Relative Humidity Range 10% - 95% (non-condensing)
