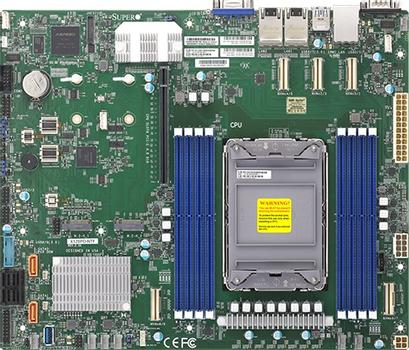

SUPERMICRO Motherboard Intel C621A Lga
Du må logge inn for å handle/se priser.
|
|
SUPERMICRO Motherboard Intel C621A Lga
Varenr.:
MBD-X12SPO-NTF-B
-
Prosessorsokkel
LGA 4189 (Socket P+)
-
Chipset
Intel C621A
-
M.2 Slot
2
-
Minnespor
8 x DIMM, DDR4
-
Maksimal RAM-frekvens
3.2GHz
-
Støttet maksimalt minne
2TB
-
Formfaktor
ATX
|
X12SPO-NTF
Features:
- 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
- Intel® C621A
- Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
- Up to 2TB Intel® Optane™ Persistent Memory, in 8 DIMM slots
- 1 PCI-E 4.0 x16, 5 PCI-E 4.0 NVMe x8 Internal Port(s)
- M.2 Interface: 2 SATA/PCI-E 3.0 x4
- M.2 Form Factor: 2280/22110
- M.2 Key: M-Key
- Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Dual LAN with Intel® X550 10GBase-T Ethernet Controller
- Supports 10x NVMe drives via SlimSAS connectors
Specifications:
Physical Stats
- Form Factor ATX
- Dimension 12" x 10" (30.48cm x 25.4cm)
Processor
- CPU
- 3rd Gen Intel® Xeon® Scalable processors
- Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
- Core Up to 40 cores
System Memory
- Memory Capacity
- 8 DIMM slots
- Up to 2TB Intel® Optane™ Persistent Memory 200 Series
- Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz
- Memory Type 3200/2933/2666MHz ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
- Memory Voltage 1.2V
- Error Detection Corrects single-bit errors
On-Board Devices
- Chipset Intel® C621A
- SATA Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI ASPEED AST2600 BMC
- Graphics ASPEED AST2600 BMC
- Network Controllers Dual LAN with Intel® X550 10GBase-T Ethernet Controller
Input / Output
- SATA 10 SATA3 (6Gbps) port(s)
- LAN 2 RJ45 10 Gigabit Ethernet LAN ports
- USB
- 6 USB 2.0 port(s) (4 via header; 2 rear)
- 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
- Video Output 1 VGA port(s)
- Serial Port 2 COM Port(s) (1 header; 1 rear)
- DOM 2 SATA DOM (Disk on Module) power connector support
- TPM 1 TPM Header
Expansion Slots
- PCI-E 1 PCI-E 4.0 x16
- M.2
- M.2 Interface: 2 SATA/PCI-E 3.0 x4
- Form Factor: 2280/22110
- Key: M-Key
System BIOS
- BIOS Type AMI UEFI
- BIOS Features
- ACPI 6.2
- SMBIOS 3.0 or later
- UEFI 2.7
Management
- Software SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
- Power Configurations Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection
PC Health Monitoring
- Voltage VBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status
- LED
- UID/Remote UID
- Suspend static indicator LED
- CPU / System Overheat LED
- Temperature
- CPU thermal trip support
- PECI
- FAN
- 7x 4-pin fan headers (up to 7 fans)
- System level control
- PWM fan speed control
- Fan speed control
- Overheat LED indication
- Other Features WOL, UID, RoHS, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT
Operating Environment
- Operating Temperature Range 0°C - 50°C (32°F - 122°F)
- Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
- Operating Relative Humidity Range 10% - 85% (non-condensing)
- Non Operating Relative Humidity Range 10% - 95% (non-condensing)
