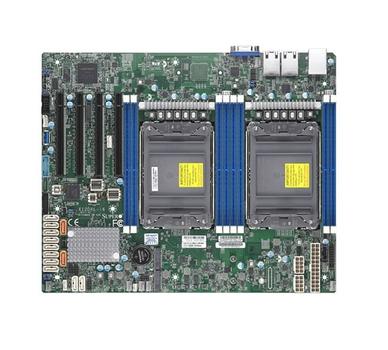

SUPERMICRO Motherboard Intel C621A Lga
Du må logge inn for å handle/se priser.
|
|
SUPERMICRO Motherboard Intel C621A Lga
-
Prosessorsokkel
LGA 4189 (Socket P+)
-
Chipset
Intel C621A
-
M.2 Slot
2
-
Minnespor
8 x DIMM, DDR4
-
Maksimal RAM-frekvens
3.2GHz
-
Støttet maksimalt minne
2TB
-
Formfaktor
ATX
|
X12DPL-i6
Features:
- 3rd Gen Intel® Xeon® Scalable processors
- Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 2 UPI up to 11.2 GT/s
- Intel® C621A
- Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, in 8 DIMM slots
- 4 PCI-E 4.0 x16
- M.2 Interface: 2 PCI-E 4.0 x4
- M.2 Form Factor: 2280/22110, 2280
- M.2 Key: M-Key
- Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Dual LAN with Intel® i210 Gigabit Ethernet Controller
- 1 VGA port
Specifications:
Physical Stats
- Form Factor ATX
- Dimension 12.23" x 10" (31.06cm x 25.4cm)
Processor
- CPU
- 3rd Gen Intel® Xeon® Scalable processors
- Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s
System Memory
- Memory Capacity
- 8 DIMM slots
- Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB ECC RDIMM, DDR4-3200MHz
- Memory Type 3200/2933/2666MHz ECC DDR4 LRDIMM (3DS), RDIMM
- DIMM Sizes
- 256GB
- LRDIMM: 256GB
- RDIMM: 256GB
- Memory Voltage 1.2V
- Error Detection
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset Intel® C621A
- SATA Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI ASPEED AST2600 BMC
- Graphics ASPEED AST2600 BMC
- Network Controllers Dual LAN with Intel® i210 Gigabit Ethernet Controller
Input / Output
- LAN 2 RJ45 Gigabit Ethernet LAN ports
- USB 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
- Video Output 1 VGA port(s)
- Serial Port 1 COM Port(s) (1 header)
- DOM 2 SATA DOM (Disk on Module) power connector support
- TPM 1 TPM Header
Expansion Slots
- PCI-E 4 PCI-E 4.0 x16
- M.2
- M.2 Interface: 1 PCI-E 4.0 x4; 1 PCI-E 4.0 x4
- Form Factor: 2280/22110, 2280
- Key: M-Key, M-Key
System BIOS
Management
- Software SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
- System Management Software IPMICFG, IPMIView for Linux/Windows, SMCIPMITool
- Power Configurations ACPI Power Management
PC Health Monitoring
- Voltage Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, 8 -fan status
- LED
- UID/Remote UID
- BMC/IPMI Heartbeat LED
- Temperature
- CPU thermal trip support
- PECI
- FAN
- 8x 4-pin fan headers (up to 8 fans)
- PWM fan speed control
- Overheat LED indication
- Other Features UID, Node Manager Support, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT, NCSI header
Operating Environment
- Operating Temperature Range 10°C - 35°C (50°F - 95°F)
- Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
- Operating Relative Humidity Range 8% - 90% (non-condensing)
- Non Operating Relative Humidity Range 5% - 95% (non-condensing)
