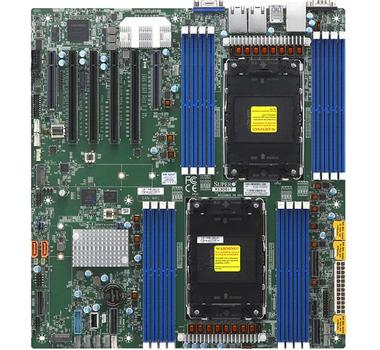

SUPERMICRO Mbd-X13Dei-T Intel C741 Lga
Du må logge inn for å handle/se priser.
|
|
SUPERMICRO Mbd-X13Dei-T Intel C741 Lga
-
Prosessorsokkel
LGA 4677 (Socket E)
-
Chipset
Intel C741
-
M.2 Slot
2
-
Minnespor
16 x DIMM, DDR5
-
Maksimal RAM-frekvens
5.6GHz
-
Støttet maksimalt minne
4TB
-
Formfaktor
EATX
|
X13DEI-T
MBD-X13DEI-T-O
Features:
- Support CXL
- 5th/4th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677 (Socket E) , CPU TDP supports up to 350W TDP
- Intel® C741 Chipset
- Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s in 16 DIMM slots
- 4 PCIe 5.0 x16
- 2 PCIe 5.0 x8
- Broadcom BCM57416 Dual ports 10G LAN
- 6 USB3.0 and 3 USB2.0
- 2 SATA DOM ports
- 2 M.2
- 6 NVMe ports PCIe 5.0 x4 via 3 MCIO connectors
- 8 SATA3.0 ports
Specifications:
Physical Stats
- Form Factor EATX
- Dimension 12.1" x 13.05" (30.74cm x 33.15cm)
Processor
- CPU
- 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
- Dual Socket V0 (LGA-4677) supported, CPU TDP supports Up to 350W TDP
- Core Up to 64 cores
System Memory
- Memory Capacity
- 16 DIMM slots
- Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s
- Memory Type 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
- DIMM Sizes
- 16GB, 32GB, 64GB, 96(XCC Only)GB, 128GB, 256GB
- RDIMM: Up to 256GB
- Memory Voltage 1.1V
- Error Detection
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset Intel® C741
- SATA
- Intel® C741 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Intel® C741 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
- IPMI ASPEED AST2600 BMC
- Network Controllers
- Dual LAN
- Dual LAN with Broadcom BCM57416 10GBase-T
Input / Output
- SATA
- 8 SATA3 (6Gbps) port(s)
- 2 SATA3 (6Gbps) port(s)
- LAN 1 RJ45 Dedicated IPMI LAN port
- USB
- 3 USB 2 port(s) (2 via header; 1 Type A)
- 6 USB 3 port(s) (2 via header; 4 rear)
- Video Output 1 VGA D-Sub Connector port(s)
- Serial Port 2 COM Port(s) (1 header; 1 rear)
- TPM 1 TPM Header
- Others 3 MCIO PCIe 5.0 x8
Expansion Slots
- PCIe
- 2 PCIe 5.0 x8,
- 4 PCIe 5.0 x16
- M.2
- M.2 Interface: 2 PCIe 4.0 x2
- Form Factor: 2280/22110
- Key: M-Key
System BIOS
- BIOS Type AMI 32MB AMI UEFI
- BIOS Features
- ACPI 6.4
- SMBIOS 2.8/3.5
- UEFI 2.8A
- Plug and Play (PnP)
- PCI FW 3.2
Management
- Software Redfish API, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0
PC Health Monitoring
- Voltage System temperature, PCH temperature, Memory temperature, CPU temperature, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +3.3V standby, Veore, Vmem, Peripheral temperature, Platform Environment Control Interface (PECI)/(TSI)
- LED
- UID/Remote UID
- CPU / System Overheat LED
- Temperature
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Monitor 2 (TM2) support
- PECI
- FAN
- 8x 4-pin fan headers (up to 8 fans)
- Fan speed control
- Overheat LED indication
- 8x fans with tachometer monitoring
- Other Features UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
Operating Environment
- Operating Temperature Range 10°C - 35°C (50°F - 95°F)
- Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
- Operating Relative Humidity Range 8% - 90% (non-condensing)
- Non Operating Relative Humidity Range 5% - 95% (non-condensing)
