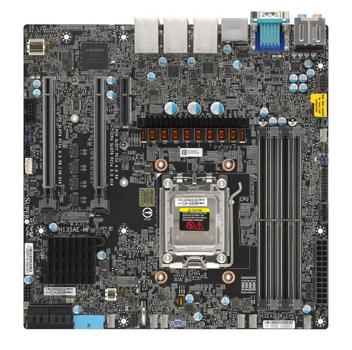

SUPERMICRO Mbd-H13Sae-Mf Amd B650 Socket
Du må logge inn for å handle/se priser.
|
|
SUPERMICRO Mbd-H13Sae-Mf Amd B650 Socket
-
Prosessorsokkel
Socket AM5
-
Chipset
AMD B650
-
M.2 Slot
2
-
Minnespor
4 x DIMM, DDR5
-
Maksimal RAM-frekvens
5.2GHz
-
Støttet maksimalt minne
192GB
-
Formfaktor
Micro ATX
|
H13SAE-MF
MBD-H13SAE-MF-B
Features:
- AMD EPYC™ 4004 series and Ryzen™ 7000 Series Processors single socket LGA-1718 (socket AM5), up to 170W
- Up to 192GB ECC/non-ECC Unbuffered DIMM, DDR5-5200MHz, in 4 DIMM slots.
- 2 PCIe 5.0 x16 (16/NA or 8/8), support up to 2 GPU cards(mechanical is up to 1 triple-width GPU card or 2 double-width GPU cards), 1 PCIe 4.0 x4
- 2x 1Gbit LAN port(i210 AT); a dedicated Realtek 1Gbit LAN for IPMI.
- Micro-ATX form factor
Specifications:
Physical Stats
- Form Factor Micro-ATX
- Dimension 9.6" x 9.6" (24.384cm x 24.384cm)
Processor
- CPU
- AMD EPYC™ 4004 series Processors
- Single Socket LGA-1718 (Socket AM5) supported, CPU TDP supports Up to 170W TDP
- Core Up to 16 cores, 32 threads
System Memory
- Memory Capacity 4 DIMM slots
- Memory Type 5200/4800/3600 MT/s Up to 192GB of memory with speeds of up to 5200MT/s (1DPC)/ 3600MT/s (2DPC)
- DIMM Sizes 8GB, 16GB, 24GB, 32GB, 48GB
- Memory Voltage 1.1V
On-Board Devices
- Chipset B650
- SATA 4 SATA3 ports; RAID 0,1,10
- IPMI ASPEED AST2600 BMC
- Audio ALC 888S HD Audio
- Network Controllers
- Dual LAN with Intel® i210 Gigabit Ethernet Controller
- Single LAN with ASPEED AST2600 BMC, Dedicated LAN for IPMI
Input / Output
- USB
- 1 USB 3.2 Gen2x2 port(s) (1 rear type C 20Gb)
- 5 USB 3.2 Gen2 port(s) (3 rear type A 10Gb; 2 rear type C DP 1.4 Alt mode)
- 2 USB 3.2 Gen1 port(s) (2 headers 5Gb)
- 1 USB 2 port(s) (1 via header 2 ports by a header)
- Video Output 1 HDMI 2.0 port(s), 1 DP 1.4a port(s), 2 rear type C port(s) DP 1.4 Alt mode
- Serial Port 1 COM Port(s) (1 header)
- TPM 1 TPM Header
Expansion Slots
- PCIe
- 1 PCIe 4.0 x4,
- 2 PCIe 5.0 x16 slots (16/NA or 8/8)
- M.2
- M.2 Interface: 2 PCIe 5.0 x4, RAID 0 & 1
- Form Factor: 2280/22110
- Key: M-Key
System BIOS
- BIOS Type AMI 32MB SPI Flash EEPROM
- BIOS Features
- ACPI 6.4
- SMBIOS 3.5 or later
- UEFI 2.8
- Plug and Play (PnP)
- USB Keyboard support
Management
- Software Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0
- Power Configurations Power-on mode control for AC power loss recovery, Power button override mechanism, S3/S4/S5
PC Health Monitoring
- Voltage System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
- FAN 7x 4-pin fan headers (up to 7 fans)
Operating Environment
- Operating Temperature Range 0°C - 50°C (32°F - 122°F)
- Non-Operating Temperature Range -20°C - 60°C (-4°F - 140°F)
- Operating Relative Humidity Range 10% - 85% (non-condensing)
- Non Operating Relative Humidity Range 10% - 95% (non-condensing)
