| Product SKUs |
|

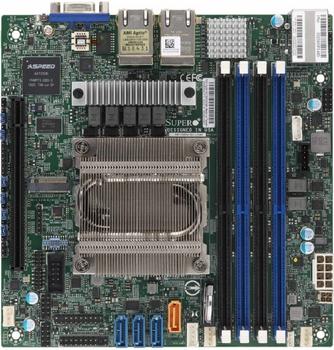

| MBD-M11SDV-4C-LN4F |
|
| |
| Physical Stats |
|
| Form Factor |
|
| Dimensions |
- 6.7" x 6.7" (17cm x 17cm)
|
| |
| Processor/Cache |
|
| CPU |
- Single AMD EPYC™ 3151 SoC Processor
|
| Cores |
|
| Chipset |
|
| |
| System Memory |
|
| Memory Capacity |
- 4 DIMM slots
- Supports up to 512GB Registered ECC DDR4 2666MHz SDRAM in 4 DIMMs
- 2-channel memory bus
|
| Memory Type |
- DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
|
| DIMM Sizes |
- 8GB, 16GB, 32GB, 64GB, 128GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
| On-Board Devices |
|
| SATA |
|
| Network Controllers |
- 4x 1GbE with Inte® I350-AM4
- 1 Realtek RTL8211E PHY (dedicated IPMI)
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2500 BMC
|
| VGA |
|
| |
| Input / Output |
|
| SATA |
|
| LAN |
- 4 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
|
| USB |
- 2 USB 3.0 ports
- 6 USB 2.0 ports
|
| VGA |
|
| Others |
- 1 COM port header
- 1 TPM 2.0 header
|
| |
| Expansion Slots |
|
| PCI-Express |
|
|
| M.2 |
- Interface: 1 PCI-E 3.0 x4
- Form factor: 2280
- Key: M-key
|
|
| Chassis ( Optimized for M11SDV-4C-LN4F ) |
|
| 1U |
|
| System BIOS |
|
| BIOS Type |
|
| |
| Management |
|
| Software |
- Super Doctor 5
- Watch Dog
- NMI
- SUM
- IPMI 2.0, KVM with dedicated LAN
|
| Power Configurations |
- ACPI Power Management
- Power-on mode control for AC power loss recovery
|
| |
| PC Health Monitoring |
|
| CPU |
- Monitors CPU Core Voltages, +1.8V, +3.3V, +12V
- CPU switching voltage regulator
- Supports system management utility
- VBAT
|
| FAN |
- Up to 3 fan status tachometer monitoring
- Up to 3 4-pin fan headers
- Dual Cooling Zone
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- Thermal control for 6x Fan connectors
- I²C Temperature Sensing Logic
|
| LED |
- CPU / System Overheat LED
|
| Other Features |
- Chassis Intrusion Detection
- Chassis Intrusion Header
- UID
|
| |
| Operating Environment / Compliance |
|
| Environmental Specifications |
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
