| Product SKUs |
|

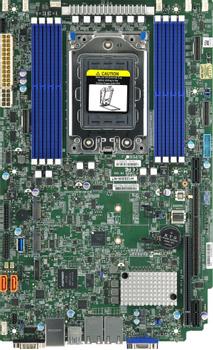

| MBD-H12SSW-NT |
- H12SSW-NT (for server SKUs only)
|
|
| Physical Stats |
|
| Form Factor |
|
| Dimensions |
|
|
| Processor/Chipset |
|
|
| CPU |
- Single AMD EPYC™ 7002 Series Processor
- Socket SP3
|
| Cores |
|
| Chipset |
|
|
| System Memory |
|
| Memory Capacity |
- 8 DIMM slots
- Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
- 8-channel memory bus
|
| Memory Type |
- DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
|
| DIMM Sizes |
- 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
|
| On-Board Devices |
|
| SATA |
|
| IPMI |
- Support for Intelligent Platform Management Interface v. 2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2500 BMC
|
| Network Controllers |
- 2x 10GbE LAN Ports via Broadcom BCM57416
- 1 Realtek RTL8211E PHY (dedicated IPMI)
|
| VGA |
|
|
| Input / Output |
|
| SATA |
|
| SATA/NVMe Hybrid |
- 16 SATA3 / 4 NVMe (PCI-E Gen3)
|
| NVMe |
|
| LAN |
- 2 RJ45 10GBase-T LAN ports
- 1 RJ45 Dedicated IPMI LAN port
|
| USB |
- 7 USB 3.0 ports (4 rear, 2 via header, 1 Type A)
|
| VGA |
|
| Others |
- 1 COM port
- 2 SuperDOM power connectors
- 1 TPM 1.2/2.0 header
|
|
| Expansion Slots |
|
| PCI-Express |
-
1 PCI-E 4.0 x32 Left Riser Slot
-
1 PCI-E 4.0 x16 Right Riser Slot
|
|
| M.2 |
-
Interface: 2 SATA/PCI-E 3.0 x2
-
Form Factor: 2280, 22110
-
Key: M-key
|
|
| Chassis ( Optimized for H12SSW-NT) |
|
| 1U |
- SC116TS-R504WBP2
- SC815TS-R504WBP4
|
|
|
| Server(s) (with H12SSW-NT) |
|
| Model(s) |
-
AS -1014S-WTRT
-
AS -1114S-WTRT
|
|
| System BIOS |
|
| BIOS Type |
- AMI 256Mb SPI Flash EEPROM
|
| BIOS Features |
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 5.1
- USB Keyboard Support
- SMBIOS 3.1.1
|
|
| Management |
|
| Software |
- Super Doctor 5
- Watch Dog
- NMI
- SUM
- IPMI 2.0, KVM with dedicated LAN
|
| Power Configurations |
- ACPI Power Management
- Power-on mode control for AC power loss recovery
|
|
| PC Health Monitoring |
|
| CPU |
- Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby
- CPU switching voltage regulator
|
| FAN |
- Up to 6 fan status tachometer monitoring
- Up to 6 4-pin fan headers
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- Thermal control for 6x Fan connectors
- I²C Temperature Sensing Logic
|
| LED |
- CPU / System Overheat LED
|
| Other Features |
- Chassis Intrusion Detection
- Chassis Intrusion Header
|
|
| Operating Environment / Compliance |
|
| Environmental Specifications |
- Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
