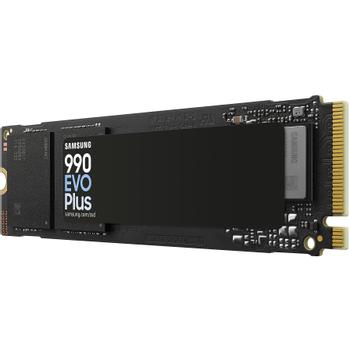

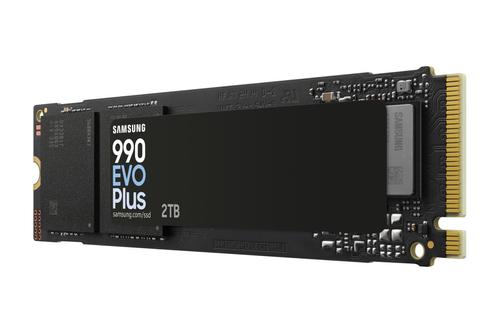

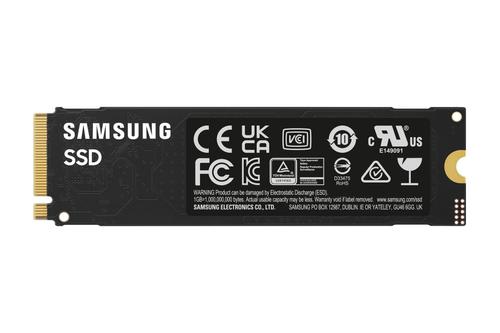

SAMSUNG 990 EVO Plus M.2 NVMe SSD 2TB

990 EVO Plus, PCIe 4.0/5.0, NVMe M.2 SSD 2TB

• Spectacular speed everyday
  • Blast through tasks faster. 990 EVO Plus with the latest NAND offers boosted sequential read/write speeds up to 7,250/6,300MB/s. Huge files, instant transfer.
• Keep cool and power through your day
  • Optimised efficiency, extended performance. The nickel-coated controller increases MB/s per Watt by 73% compared to the 990 EVO, achieving the same power level and thermal control with less power consumption. Stay focused on work or play without worrying about overheating or battery life.
• Extra space. Extra speed.
  • Harness the full power of your drive with enhanced Intelligent TurboWrite 2.0. Process massive data faster and breeze through heavy graphics with an enlarged TurboWrite region, now available in 4TB capacity.
• Samsung Magician software
  • Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.
• Bringing innovations to life
  • For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

• Application Client PCs
• Capacity 2,000GB (1GB=1 Billion byte by IDEMA)
• Form Factor M.2 (2280)
• Interface PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0
• Dimension (WxHxD) Max 80.15 x Max 22.15 x Max 2.38 mm
• Weight Max 9.0g Weight
• Storage Memory Samsung V-NAND TLC
• Controller Samsung in-house Controller
• Cache Memory HMB(Host Memory Buffer)

• TRIM Support Supported
• S.M.A.R.T Support Supported
• GC (Garbage Collection) Auto Garbage Collection Algorithm
• Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
• WWN Support Not supported
• Device Sleep Mode Support Yes

• Sequential Read Up to 7,250 MB/s
• Sequential Write Up to 6,300 MB/s
• Random Read (4 KB, QD32) Up to 1,000,000 IOPS
• Random Write (4KB, QD32) Up to 1,350,000 IOPS

• Average Power Consumption (system level)Average: Read 4.6 W / Write 4.2 W
• Power consumption (Idle) Typical 60 mW
• Power Consumption (Device Sleep) Typical 5 mW
• Allowable Voltage 3.3 V ± 5 % Allowable voltage
• Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
• Operating Temperature 0 - 70 ℃ Operating Temperature
• Shock 1,500 G & 0.5 ms (Half sine)

• Installation Kit Not Available

• Management SW Magician Software for SSD management

• 5-year Limited Warranty or 600TBW Limited Warranty
