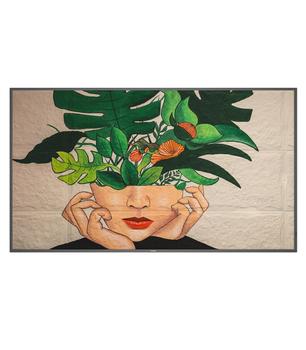

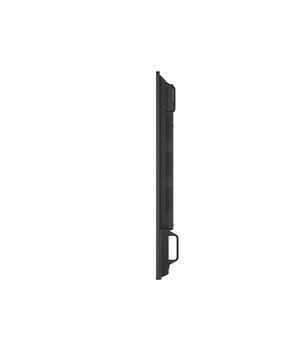

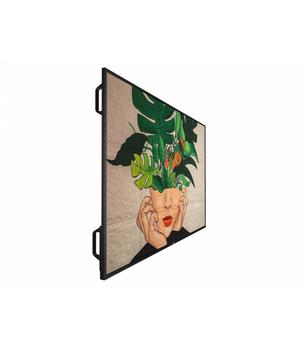

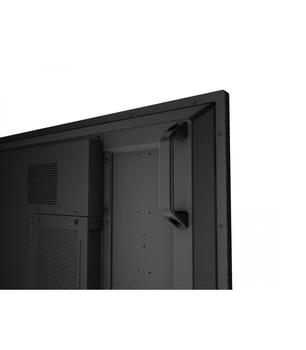

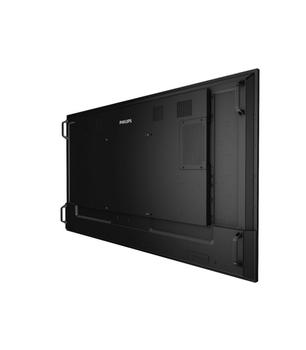

PHILIPS 55 D-Line FHD 24/7

Signage Solutions D-Line Display

• Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
• From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.
• The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.
• Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.
• Be seen from any angle with ADS wide-view technology. Advanced Super Dimension Switch delivers faster on-display picture processing for smoother content transitions, remarkable image accuracy and superior colour reproduction with 180 degree viewing.
• Open Pluggable Specification is an industry-standard slot into which you can add an OPS-compatible media player. This gives you the ability to upgrade or change your hardware whenever you need to. Turning your display into an all-in-one digital signage solution has become simplicity itself.

• Picture/Display
• Diagonal screen size (metric) - 138.7  cm
• Diagonal screen size (inch) - 54.6  inch
• Panel resolution - 3840 x 2160
• Optimum resolution - 3840 x 2160 @ 60 Hz
• Brightness - 500  cd/m²
• Dynamic contrast ratio - 500,000:1
• Response time (typical) - 8  ms
• Aspect ratio - 16:9
• Viewing angle (horizontal) - 178  degree
• Viewing angle (vertical) - 178  degree
• Pixel pitch - 0.315 × 0.315 mm
• Display colours - 1.07 Billion
• Panel technology - VA
• Contrast ratio (typical) - 5000:1
• Haze - 25%
• Supported Display Resolution
• Computer formats

  • 640 x 480, 60 Hz

  • 800 x 600, 60 Hz

  • 1024 x 768, 60 Hz

  • 1280 x 720, 60 Hz

  • 1280 x 1024, 60 Hz

  • 1440 x 900, 60 Hz

  • 1600 x 900, 60 Hz

  • 1680 x 1050, 60 Hz

  • 1920 x 1080, 60 Hz

  • 3840 x 2160, 30, 60 Hz

• Video formats

  • 480i, 60 Hz

  • 480p, 60 Hz

  • 576p, 50 Hz

  • 576i, 50 Hz

  • 720p, 50,60 Hz

  • 1080i, 50, 60 Hz

  • 1080p, 50, 60 Hz

  • 2160p, 24, 30, 60 Hz

• Connectivity
• Video input

  • Display Port1.2 (x 1)

  • DVI-I (x 1)

  • HDMI 2.0 (x 2)

  • USB 2.0 (x 2)

• Audio input - 3.5 mm jack
• Video output

  • DisplayPort 1.2 (x 1)

  • HDMI 2.0 (x 1)

• Audio output - 3.5 mm jack
• External control

  • IR (in/out) 3.5 mm jack

  • RJ45

  • RS232C (in/out) 2.5 mm jack

• Other connections - OPS
• Convenience
• Placement

  • Landscape (24/7)

  • Portrait (24/7)

• Screen-saving functions - Pixel Shift, Low Bright
• Signal loop through

  • DisplayPort

  • RS232

  • HDMI

  • IR Loop through

• Energy-saving functions - Smart Power
• Network controllable

  • RS232

  • RJ45

• Keyboard control

  • Hidden

  • Lockable

• Operating conditions
• Temperature range (operation) - 0 ~ 40  °C
• Temperature range (storage) - -20 ~ 60  °C
• Altitude - 0 ~ 3000 m
• MTBF - 50,000  hour(s)
• Humidity range (operation)[RH] - 20–80% RH (No condensation)
• Humidity range (storage) [RH] - 5–95% RH (No condensation)
• Power
• Consumption (Typical) - 135  W
• Consumption (Max) - 278 W
• Standby power consumption - 0.5 W
• Mains power - 100 ~ 240 VAC, 50 ~ 60 Hz
• Energy Label Class - G
• Sound
• Built-in speakers - 2 x 10 W RMS
• Accessories
• Stand - BM05922(Optional)
• Included Accessories

  • AC Switch Cover

  • Philips logo (x 1)

  • RS232 daisy-chain cable

  • AC power cord

  • IR sensor cable (1.8 m) (x 1)

  • Quick start guide (x 1)

  • Remote control and AAA batteries

  • RS232 cable

  • USB Cover and screw x 1

  • Wire Clamper (x 3)

• Miscellaneous
• On-Screen Display Languages

  • Arabic

  • Dutch

  • Danish

  • English

  • French

  • Finnish

  • German

  • Italian

  • Japanese

  • Norwegian

  • Polish

  • Portuguese

  • Russian

  • Spanish

  • Swedish

  • Simplified Chinese

  • Turkish

  • Traditional Chinese

• Regulatory approvals

  • CE

  • FCC, Class A

  • CCC

  • RoHS

  • CB

  • BSMI

  • EMF

  • VCCI

  • PSB

  • ETL

  • CECP

  • EAC

• Warranty - 3 year warranty
• Multimedia Applications
• USB Playback Video

  • H.263

  • H.264

  • H.265

  • MPEG

• USB Playback Picture

  • BMP

  • JPEG

  • PNG

• USB Playback Audio

  • AAC

  • MPEG

  • HEAAC

• Dimensions
• Set Width - 1241.8  mm
• Set Height - 712.6  mm
• Set Depth - 63.6  mm
• Set Width (inch) - 48.89  inch
• Set Height (inch) - 28.06  inch
• Set Depth (inch) - 2.50  inch
• Bezel width - 13.9 mm (Even bezel)
• VESA Mount - 400 (H) x 400(V) mm, M6
• Product weight - 16.6  kg
• Product weight (lb) - 36.60  lb
