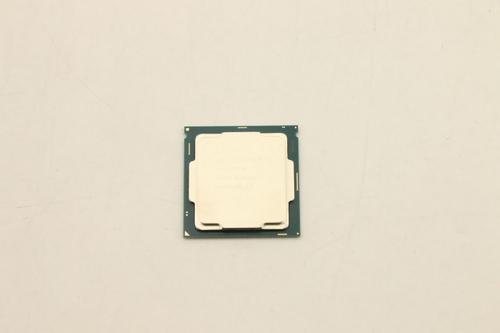

LENOVO Xeon E3-1230 v6 processor,
Du må logge inn for å handle/se priser.
|
|
LENOVO Xeon E3-1230 v6 processor,
-
Prosessorsokkel
LGA 1151 (kontakt H4)
-
CPU-familie
Intel® Xeon® E3 v6
|
Xeon® E3-1230 v6
8M Cache, 3.50 GHz
Specifications:
Essentials
-
Product Collection
Intel® Xeon® Processor E3 v6 Family
-
Code Name
Products formerly Kaby Lake
-
Vertical Segment
Server
-
Processor Number
E3-1230V6
-
Lithography
14 nm
CPU Specifications
-
# of Cores
4
-
# of Threads
8
-
Processor Base Frequency
3.50 GHz
-
Max Turbo Frequency
3.90 GHz
-
Cache
8 MB Intel® Smart Cache
-
Bus Speed
8 GT/s
-
Intel® Turbo Boost Technology 2.0 Frequency
3.90 GHz
-
TDP
72 W
-
VID Voltage Range
0.55V-1.52V
Memory Specifications
-
Max Memory Size (dependent on memory type)
64 GB
-
Memory Types
DDR4-2400, DDR3L-1866
-
Max # of Memory Channels
2
-
Max Memory Bandwidth
37.5 GB/s
-
ECC Memory Supported
: Yes
Processor Graphics
-
Graphics Output
N/A
-
4K Support
: No
-
Max Resolution (HDMI)
N/A
-
Max Resolution (DP)
N/A
-
Max Resolution (eDP - Integrated Flat Panel)
N/A
-
Max Resolution (VGA)
N/A
-
DirectX Support
N/A
-
OpenGL Support
N/A
-
Intel® Quick Sync Video
: No
-
Intel® InTru™ 3D Technology
: No
-
Intel® Clear Video HD Technology
: No
-
Intel® Clear Video Technology
: No
-
# of Displays Supported
0
Expansion Options
-
Scalability
1S Only
-
PCI Express Revision
3.0
-
PCI Express Configurations
1x16, 2x8, 1x8+2x4
-
Max # of PCI Express Lanes
16
Package Specifications
-
Sockets Supported
FCLGA1151
-
Max CPU Configuration
1
-
Package Size
37.5mm x 37.5mm
Advanced Technologies
-
Intel® Optane™ Memory Supported
: Yes
-
Intel® Turbo Boost Technology
2.0
-
Intel vPro® Platform Eligibility
: Yes
-
Intel® Hyper-Threading Technology
: Yes
-
Intel® Virtualization Technology (VT-x)
: Yes
-
Intel® Virtualization Technology for Directed I/O (VT-d)
: Yes
-
Intel® VT-x with Extended Page Tables (EPT)
: Yes
-
Intel® Transactional Synchronization Extensions
: Yes
-
Intel® 64
: Yes
-
Instruction Set
64-bit
-
Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
-
Idle States
: Yes
-
Enhanced Intel SpeedStep® Technology
: Yes
-
Thermal Monitoring Technologies
: Yes
Security & Reliability
-
Intel® AES New Instructions
: Yes
-
Secure Key
: Yes
-
Intel® Software Guard Extensions (Intel® SGX)
: Yes with both Intel® SPS and Intel® ME
-
Intel® Memory Protection Extensions (Intel® MPX)
: Yes
-
Intel® OS Guard
: Yes
-
Intel® Trusted Execution Technology
: Yes
-
Execute Disable Bit
: Yes
-
Intel® Boot Guard
: Yes
