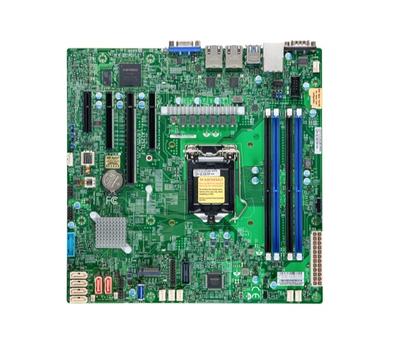

SUPERMICRO X12Stl-F-B Bulk Intel C252

X12STL-F

• Intel® Xeon® E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP
• Intel® C252
• Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
• 1 PCI-E 4.0 x8, 1 PCI-E 4.0 x8 (in x16 slot), 1 PCI-E 4.0 x4 (in x8 slot)1 PCI-E 3.0 x2 (in x4 slot)
• M.2 Interface: 1 PCI-E 3.0 x4
• M.2 Form Factor: 2280/22110
• M.2 Key: M-Key
• Dual LAN with 1GbE with Intel® I210
• Intel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• 1 VGA D-Sub Connector port
• 2 SuperDOM with built-in power
• 5x USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 4x USB 2.0 (2 rear, 2 via headers)

• Form Factor microATX
• Dimension 9.6" x 9.6" (24.38cm x 24.38cm)

• CPU
  • 10th Generation Intel® Pentium® Processor, Intel® Xeon® E-2300 Processor
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
• Core Up to 8 cores

• Memory Capacity
  • 4 DIMM slots
  • Up to 128GB ECC UDIMM, DDR4-3200MHz
• Memory Type 3200/2933/2666MHz SDRAM
• DIMM Sizes 4GB, 8GB, 16GB, 32GB
• Memory Voltage 1.2V
• Error Detection Corrects single-bit errors

• Chipset Intel® C252
• SATA Intel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• IPMI ASPEED AST2600 BMC
• Graphics ASPEED AST2600 BMC
• Network Controllers Dual LAN with 1GbE with Intel® I210

• SATA 6 SATA3 (6Gbps) port(s)
• LAN 2 1GbE LAN ports
• USB
  • 4 USB 2.0 port(s) (2 rear; 2 via header)
  • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
• Video Output 1 VGA D-Sub Connector port(s)
• Serial Port 2 COM Port(s) (1 header; 1 rear)
• DOM 2 SuperDOM (Disk on Module) power connector
• TPM 1 TPM Header

• PCI-E
  • 1 PCI-E 4.0 x8 (in x16 slot),
  • 1 PCI-E 4.0 x8,
  • 1 PCI-E 4.0 x4 (in x8 slot),
  • 1 PCI-E 3.0 x2 (in x4 slot)
• M.2
  • M.2 Interface: 1 PCI-E 3.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key

• BIOS Type 256MB UEFI
• BIOS Features
  • ACPI 6.0
  • SMBIOS 3.3
  • Plug and Play (PnP)
  • RTC (Real Time Clock) Wakeup
  • UEFI 2.7
  • USB Keyboard support
  • PCI 3.0

• Software SuperDoctor® 5, SUM, SPM, SSM, IPMI2.0, Watchdog
• System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
• Power Configurations Power-on mode for AC power recovery, ACPI Power Management

• Voltage VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
• LED
  • UID/Remote UID
  • BMC/IPMI Heartbeat LED
• Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
• FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • Thermal control tachometer fan connectors
  • Fan speed control
  • 6 fans with tachometer status monitoring
  • Overheat LED indication
• Other Features WOL, UID, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management

• Operating Temperature Range 0°C - 50°C (32°F - 122°F)
• Non-Operating Temperature Range -20°C - 60°C (-4°F - 140°F)
• Operating Relative Humidity Range 10% - 85% (non-condensing)
• Non Operating Relative Humidity Range 10% - 95% (non-condensing)
