| Product SKUs |
|

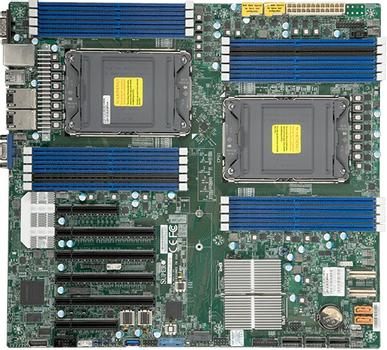

| MBD-X12DPi-NT6 |
|
|
|
|
|
| Physical Stats |
|
| Form Factor |
|
| Dimension |
- 12" x 13" (30.48cm x 33.02cm)
|
|
|
|
|
| Processor |
|
| CPU |
- 3rd Gen Intel® Xeon® Scalable processors
- Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
|
| Core |
|
|
|
|
|
| System Memory |
|
| Memory Capacity |
- 18 DIMM slots
- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz
- Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB ECC RDIMM, DDR4-3200MHz
- P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.
|
| Memory Type |
- 3200/2933/2666MHz ECC 3DS DDR4 LRDIMM, RDIMM
|
| DIMM Sizes |
- LRDIMM: 256GB
- RDIMM: 256GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
|
|
|
|
| On-Board Devices |
|
| Chipset |
|
| SATA |
- Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
| IPMI |
|
| Network Controllers |
- Dual LAN with 10GBase-T with Intel® X550
|
|
|
|
|
| Input / Output |
|
| SATA |
|
| LAN |
- 2 RJ45 10 Gigabit Ethernet LAN ports
|
| USB |
- 7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
- 2 USB 2.0 port(s) (2 via header)
|
| Video Output |
- 2 VGA (1 rear bezel, 1 front panel) port(s)
|
| Serial Port |
- 2 COM Port(s) (1 header; 1 rear)
|
| TPM |
|
|
|
| Expansion Slots |
|
| PCI-E |
- 4 PCI-E 4.0 x16,
- 2 PCI-E 4.0 x8
|
| M.2 |
- M.2 Interface: 1 PCI-E 4.0 x4
- Form Factor: 2280/22110
- Key: M-Key
|
|
|
|
|
| System BIOS |
|
| BIOS Type |
|
|
|
|
|
| Management |
|
| Software |
- SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
|
| System Management Software |
- IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
|
|
|
|
|
| PC Health Monitoring |
|
| Voltage |
- VBAT, System temperature, PCH temperature, Monitors CPU voltages, Memory temperature, CPU temperature, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, Memory Voltages, LAN temperature, 8 -fan status
|
| LED |
- UID/Remote UID
- Power LED
- BMC/IPMI Heartbeat LED
|
| FAN |
- 8x 4-pin fan headers (up to 8 fans)
- PWM fan speed control
|
| Other Features |
- WOL
- UID
- RoHS
- Node Manager Support
- Dual Cooling Zones
- CPU thermal trip support for processor protection
- Control of power-on for recovery from AC power loss
- Chassis intrusion header
- ATX Power connector
- ACPI power management
- SDDC
- RoT
- NCSI header
|
|
|
|
|
| Operating Environment |
|
| Operating Temperature Range |
- 10°C - 35°C (50°F - 95°F)
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
