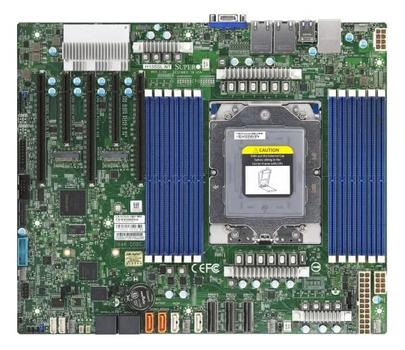

SUPERMICRO H13Ssl-Nt Amd Soc Socket Sp5
Du må logge inn for å handle/se priser.
|
|
SUPERMICRO H13Ssl-Nt Amd Soc Socket Sp5
-
Prosessorsokkel
Socket SP5
-
Chipset
System på brikke
-
M.2 Slot
1
-
Minnespor
12 x DIMM, DDR5
-
Maksimal RAM-frekvens
4.8GHz
-
Støttet maksimalt minne
3TB
-
Formfaktor
ATX
|
H13SSL-NT
MBD-H13SSL-NT-O
Features:
- AMD EPYC™ 9004 series Processors
- System on Chip
- Up to 3TB 3DS ECC RDIMM, DDR5-4800MHz in 12 DIMM slots
- 3 PCIe 5.0 x16 2 PCIe 5.0 x8
- 2x 10GBase-T LAN Ports via Broadcom BCM57416
- Up to 6 USB 3.0 ports(4 rear + 2 via header)
- 8 SATA3
- ASPEED AST2600 BMC graphics
- 6 PWM 4-pin Fans with tachometer status monitoring
- M.2 Interface: 2 PCIe 4.0 x4, M.2 Form Factor: 2280, 22110
Specifications:
Physical Stats
- Form Factor ATX
- Dimension 12" x 10.1" (30.48cm x 25.65cm)
Processor
- CPU
- AMD EPYC™ 9004 series Processors
- Single Socket SP5 supported, CPU TDP supports Up to 400W TDP
- Core Up to 128 cores, 256 threads
System Memory
- Memory Capacity 12 DIMM slots, Up to 3TB 3DS ECC Registered RDIMM, DDR5-4800MT/s
- Memory Type 4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC)
- DIMM Sizes 16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB
- Memory Voltage 1.1V
- Error Detection
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset System on Chip
- Network Controllers Dual LAN with Broadcom BCM57416 10GBase-T
Input / Output
- SATA 8 SATA3 (6Gbps) port(s)
- LAN 1 RJ45 Dedicated IPMI LAN port
- USB 6 USB 3.0 port(s) (4 USB; 2 via header)
- Video Output 1 VGA port(s)
- Serial Port 1 COM Port(s) (1 header)
- TPM 1 TPM Header
- Others
- 1 MCIO (PCIe 5.0 x8/SATA3) Port(s)
- 2 MCIO (PCIe 5.0 x8) Port(s)
Expansion Slots
- PCIe
- 3 PCIe 5.0 x16 (in x16 slot),
- 2 PCIe 5.0 x8
- M.2
- M.2 Interface: 2 SATA/PCIe 4.0 x4
- Form Factor: 2280/22110
- Key: M-Key
System BIOS
- BIOS Type AMI 32MB SPI Flash EEPROM
- BIOS Features
- ACPI 6.4
- SMBIOS 3.5 or later
- UEFI 2.8
- Plug and Play (PnP)
- USB Keyboard support
Management
- Software Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0
Security
- Hardware Trusted Platform Module (TPM) 2.0
PC Health Monitoring
- Voltage VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
- LED
- UID/Remote UID
- BMC/IPMI Heartbeat LED
- Other Features RoT
- FAN 6x 4-pin fan headers (up to 6 fans)
Operating Environment
- Operating Temperature Range 10°C - 35°C (50°F - 95°F)
- Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
- Operating Relative Humidity Range 8% - 90% (non-condensing)
- Non Operating Relative Humidity Range 5% - 95% (non-condensing)
